Dowel Pin

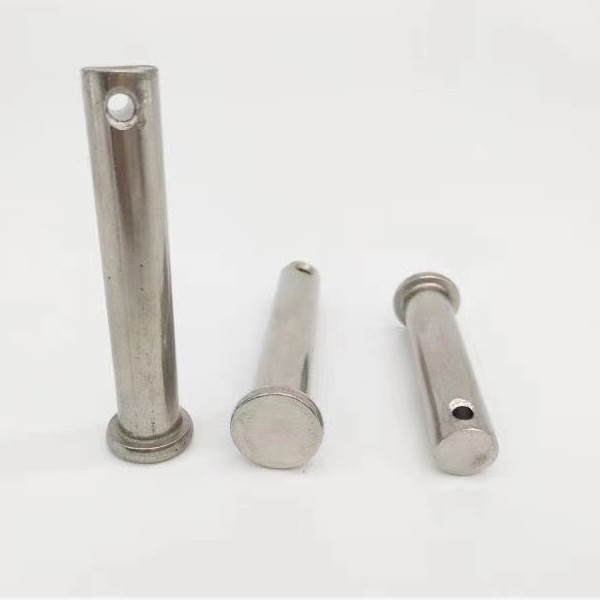

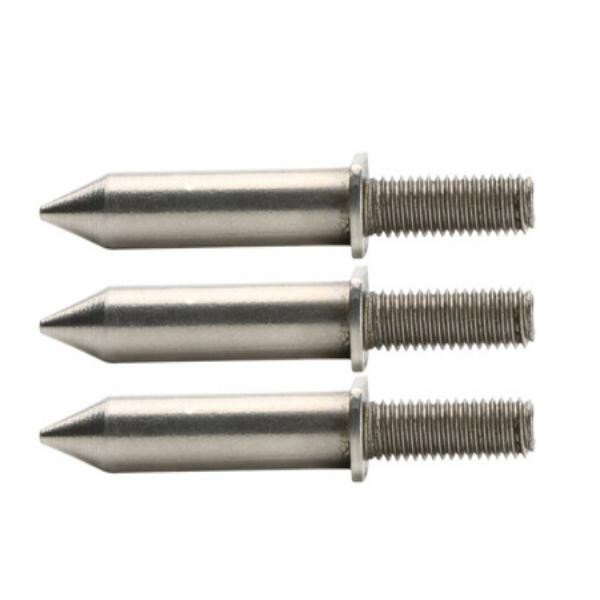

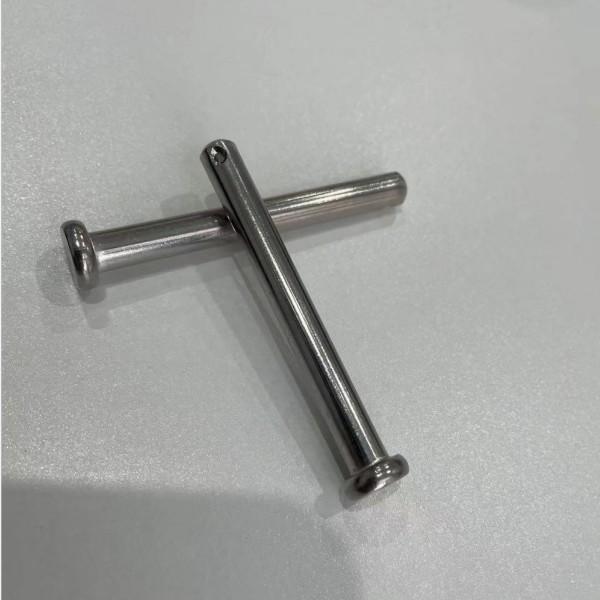

Pins can have various applications in the form of Hinge, dowels, axles, shafts, spindles, plungers, pistons, pivots, etc.

FAST factory is able to operate taper, radius, groove, slot, drilling, turning, chamfer, knurling, cold forging, hot forging, threading etc.

Common used diameter tolerance is  m6, though we have capability of maintaining diameter accuracy within 3 microns, that is , ±1μ.

Our product size range: 1/16" - 2" diameters （1.5mm- 60mm）,

Pull Dowel Pins: 3/16" - 2" diameters （4.5mm- 60mm）,Flat Vents available for air relief.

Materials:
Alloy Steel (GCr15, 40Cr, 3Cr13,SUJ2)
Stainless Steel (18-8, 303,1.4305, Z10CNF18-09, 304,1.4301, Z6CN18-09,316,1.4401, Z6CND17-12,316L)

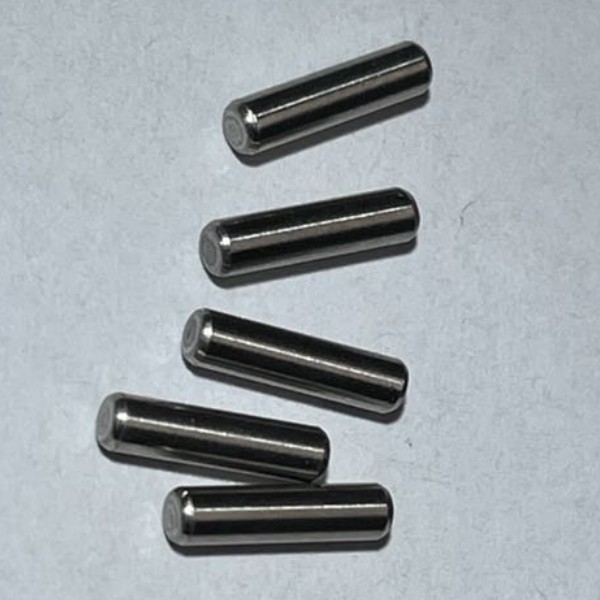

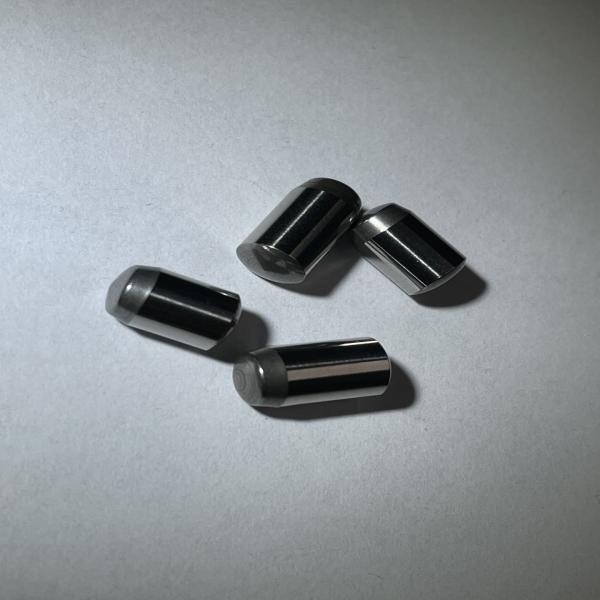

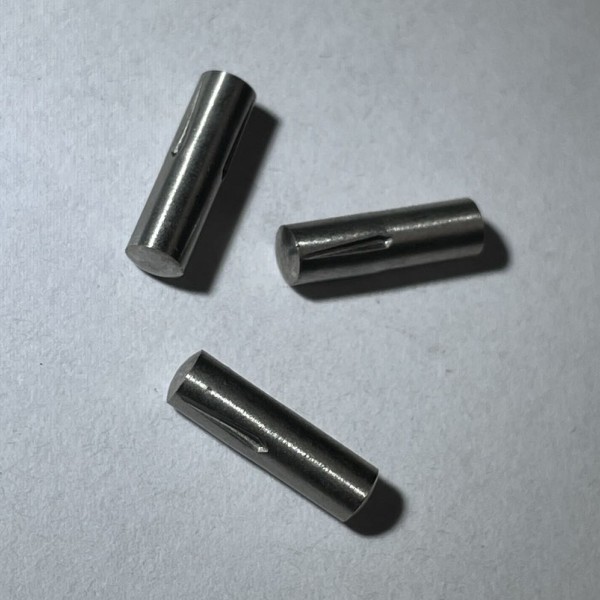

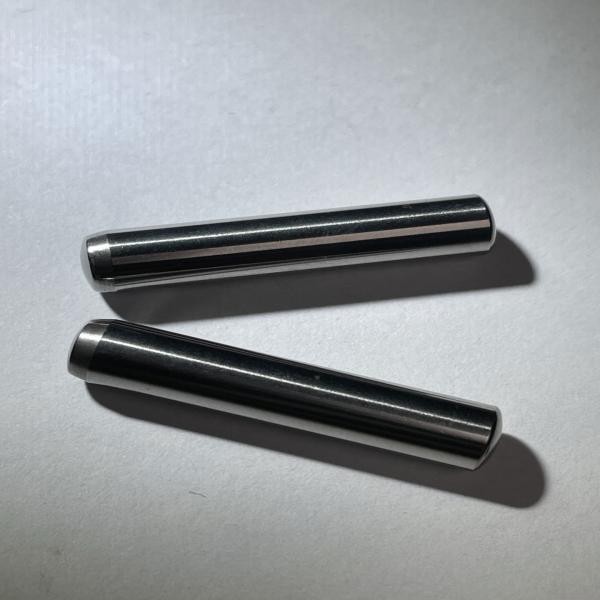

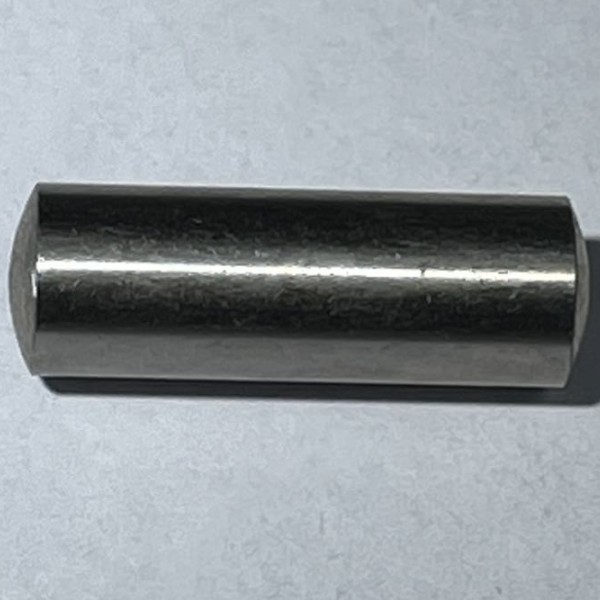

Dowel pins are short cylindrical rods that are made up of either metal, plastic, or wood.

These pins are used to align or join two or more components in machinery, construction, and furniture making.

They have many uses, such as aligning machine components during assembly for consistent results or joining stone and concrete in masonry.

Our dowel pins comes in an abundance of end designs, micro-finishes, and features.

We provide dowel pins in common materials like steel, brass, and aluminum

and offer a wide selection of sizes, including the prevailing standard for imperial (ASME B18.8.2) and metric (DIN/ISO) sizes.
